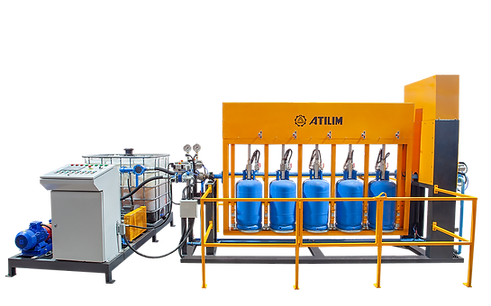

Used for hydrostatic testing for any type of LPG cylinders. Empty cylinders are compressed with pneumatic pistons. The water is pumped inside the cylinders with electric water pumps up to a maximum of 40 bar pressure. After the test is completed water inside the cylinder is discharged by air pressure. There are two models exist automatic and manuel.
-
Automatic and manuel rotation.
-
Automatic PLC control system.
-
Automatic and manuel pnuematic control system.
-
5 or 10 testing posts.
Features
6 Kg for
-
5 Posts: 200 Cylinder / h.
-
10 Posts: 400 Cylinder / h.
12 Kg for
-
5 Posts: 120 Cylinder / h.
-
10 Posts: 240 Cylinder / h.
50 Kg for
-
5 Posts: 35 Cylinder / h.
-
10 Posts: 70 Cylinder / h.
Production Capacity
Cylinder Type: All types of Cylinder
Max. Test Pressure: 45 Bar.
